195 NauticBay by Nauticstar Boats
UNRIVALED IN QUALITY. PERFORMANCE. FISHABILITY.
NauticStar’s all new 195 NauticBay is a boat for the serious angler who wants big time features in a smaller horsepower package. The 195 is also available with the XTS (Extreme Tournament Series) Package which adds even more fishability! Standard features include rear fold down jump seats, an aft release well and a console baitwell. The unique front deck houses a top entry rod locker, bow storage and an insulated fish box. The 195 is available with up to a 150 HP Yamaha. It runs great with a 90, but the new Yamaha VF115XA SHO is sure to be a popular motor package to get you to the catch quick!

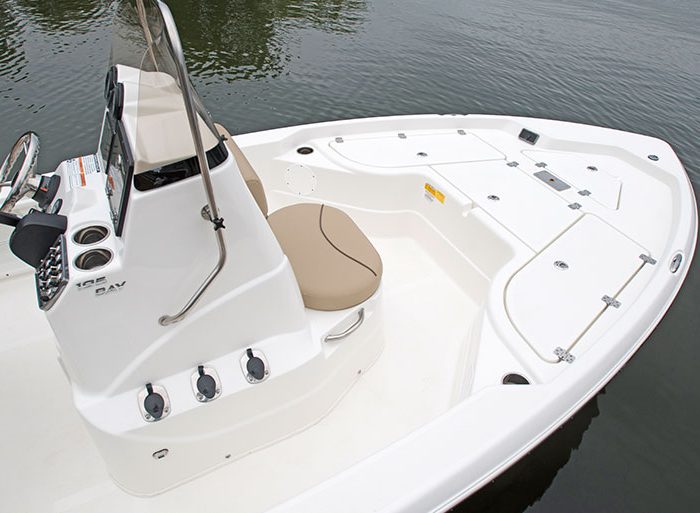

Front Fishing Deck
With the hatches closed the Nauticstar 195 Bay bow forms a nice size fishing platform. The bow also has 2-stainless steel cup holders and trolling motor quick disconnect.
Bow Storage Compartments
The Nauticstar 195 Bay has a port side rod box, a center storage box, and a starboard insulated fish box with overboard drain.
Large Rear Deck
With jump seats in the flipped-down position, the Nauticstar 195 Bay has a nice large rear fishing deck.

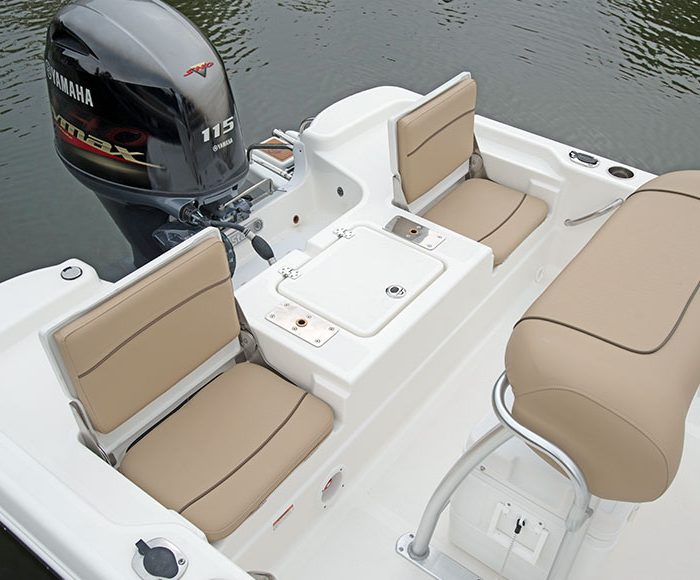

Rear Jump Seats
Two rear jump seats built into the Nauticstar 195 rear deck flip-up for passenger seating while headed out fishing. They fold down to form the rear fishing deck.
Large Rear Livewell
The Nauticstar 195 Bay has a 27 gallon insulated livewell built into the rear deck with quick and easy access.

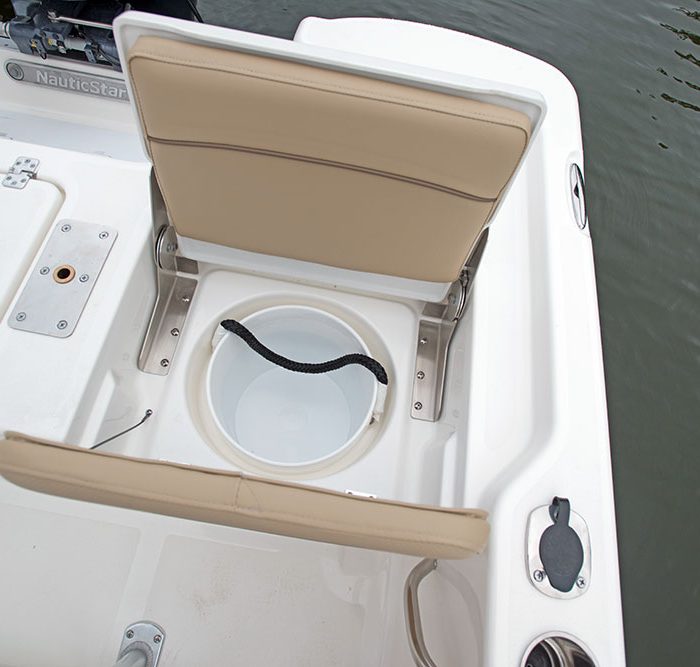

Castnet bucket and Storage
Also built into the rear fiching deck of the Nauticstar 195 Bay is a area designed to store your castnet and bucket conveniently out of the way. It can be easily accesed by fliping open the bottom of the port side rear jump seat.
Front Baitwell / Livewell
The Nauticstar 195 Bay features and 13 gallon insulated livewell / baitwell built into the front of the center console located under the front seat cushion.
Rod Holders
The addition of the XTS package in the Nautic Star 195 Bay adds storage for fishing rods in the under gunnel rod holders.
Anchor Storage
An anchor storage compartment in the bow of the Nautic Star 195 Bay keeps your anchor storred conveniently out of the way.
Swim Platform
An optional swim platform with a retractible folding ladder can be added to the Nauticstar 195 Nautic Bay making getting in and out of the boat in water much easier.
Nautic Star 195 Bay Boat Specifications, Features, and Options
Length 18′ 8″
Beam 93″
Maximum HP 150 HP
Transom Height 25″
Approximate Draft 11″
Deadrise @ Transom 13°
Deadrise @ Entry 50°
Approximate Boat Weight 1298 lb / 953 KG
*Fuel Capacity 37 Gal
Front Livewell 13 Gal
Aft Livewell 27 Gal
Bow Fish Box 20 Gal
Persons/Total Weight 7/938 lb
Max Weight Capacity 1600 lb
Construction:
- Wood Free Construction
- Limited Lifetime Hull Warranty
- Vinyl Ester Barrier Coat
- Fiberglass Stringer System
- Self Bailing Cockpit with Molded Non Skid
- RTM Fiberglass Lids
- Hull Color
- No Feed Back Steering
- Teleflex Extreme or Yamaha Control Cables
- Anchor Storage with Anchor
- Forward Center Storage Box
- Port/Bow Rod Box
- Insulated Fish Box with Drain
- Aft Livewell – 27 Gallon
- Aft Jump Seats w/ Stainless Steel Locking Hinge & Storage
- Syntec Vinyl with Nano Block Stain Protection
- Transhield® Shipping Wrap
Hardware:
- Stainless Steel Latches
- Stainless Steel Jump Seat Grab Rails
- Stainless Steel Gunnel Rod Holders – 2
- Stainless Steel Cleats – 4
- Polished Stainless Steel Seat Base – 1 (Bow)
- Brass Splashwell Drains
Console:
- Stainless Steel Fold Down Grab Rail
- Removable Windshield
- Custom Stainless Steel Wheel with Finger Grips
- In-Console Livewell/Baitwell – 13 Gallon
- Console Vertical Rod Holders – 6
- Surface Mounted Stainless Steel Drink Holders – 4 (total)
- Horn w/ Stainless Steel Grill
- 12 Volt Acc. Plug
- Standard Leaning Post with Cushion and 94 Qt. Igloo® Cooler
- Console Mounted Back and Bottom Forward Seating
- Pull Out – 1 ½” Standpipe Overflow/Drain
- LED Navigation and Courtesy Lights
Marine Grade Electrical System:
- Circuit Breaker Protection
- Stainless Steel Toggle Switches with Matching Acrylic Gauge Panel
- Deutsch Electrical Connectors
- Speedometer, Tachometer, and Fuel Gauges
- Auto Bilge Pump – 750 GPH
- 2-Aerator Pumps – 800 GPH
- 8-Gauge Trolling Motor Harness
AVAILABLE MOTOR PACKAGES
- Yamaha 90 Foustroke
- Yamaha 90 VMAX SHO Fourstroke
- Mercury 90 Fourstroke
- Yamaha 115 Fourstroke
- Mercury 115 Fourstroke
- Yamaha 115 VMAX SHO Fourstroke
- Mercury 115 PROXS Fourstroke
OPTIONAL EQUIPMENT
- Trim Gauge
- Water Pressure Gauge
- Hour Meter for Analog – Only
- Single Battery Switch
- Dual Battery Switch
- Dual Pro Charger PRO2
- BayStar Pro Hydraulic Steering Exchange
- Lenco® Trim Tabs with Standard Switch
- Lowrance® Hook 2-5 Fishfinder/GPS
- Simrad® Go5 5″ Touchscreen Fishfinder/ Chartplotter with Shoot thru transducer
- Simrad® Go7 7″ Touchscreen Fishfinder/ Chartplotter with Shoot thru transducer
- Stainless Steel Locking Back Flip-Flop Seat with Easy Cooler Access (Cooler is Standard)
- Livewell Recirc Kit
- High Speed Pickups for Aerators
- Color Match Bimini w/Ball & Socket Hardware (Not Available in Sea Foam or Titanium)
- Black Acrylic Glove Box with Slam Latch
- (4) Pull Up Cleats (in lieu of standard cleats)
- Stainless Steel Rub Rail Insert
- Acrylic Swim Platform with Ladder
- Low Pressure Washdown System
- High Pressure Washdown System
- Recessed Horizontal Gunnel Rod Holders
- SeaDek® Anti-Fatigue Mat
- Surface Mount Compass
- Infinity® Stereo with Bluetooth®, Pre-Set Capability and 2-JBL Marine Speakers
- Minn Kota® RT70 – 70 lbs Thrust 24V Hand Control
- Fishing Seat w/ Pedestal
- Bike Seat and Pro Pole
- (2) 4×8 Seat Bases Only (Rear)
- 3D NauticStar Logo
- Upper Hull Color
